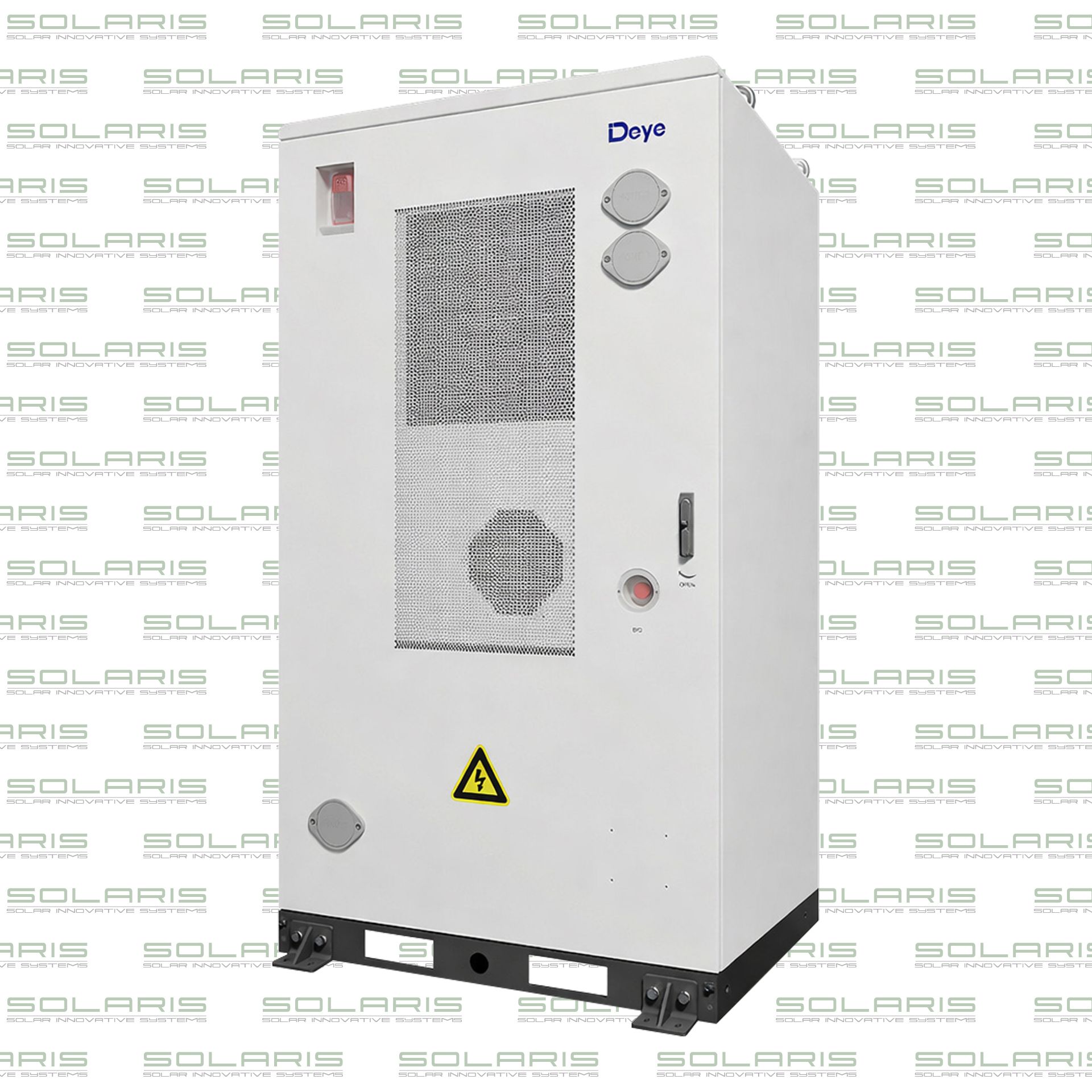

The Deye GE-F240-BC-2-A3 is a high-voltage outdoor battery cabinet designed for commercial and industrial (C&I) energy storage. This highly integrated, all-in-one system is engineered for quick deployment and ultimate safety, featuring a modular configuration that integrates seamlessly with Deye hybrid inverters or PCS systems.
The system utilizes 15 LiFePO₄ modules in series to deliver 241.15 kWh of nominal and usable energy. With an IP55 protection rating and an advanced thermal management system, it is built to provide stable and efficient performance in demanding outdoor environments. |
| Ultimate Protection, Continuing "0" safety accidents |
| -Six-dimensional safety design system that reduces fire and explosion risks through electrical isolation, physical insulation, active exhaust, directional venting, aerosol suppression, and water fire sprinklers, combined with a high-strength cabinet featuring a patented door latch design that eliminates structural weak points, and hour-level fire resistance to prevent heat spread. |
| Highly Integrated, All-in-one quick deployment |
-Outer cabinet wall preset inverter bracket installation position, no wall bearing concerns, no need to drill.
-Hybrid inverter, covering PV, grid, load, generator, and battery interfaces.
-Single cabinet can easily deploy PV+BESS, PV+BESS+DG.
|
| Stable Efficient, Excellent performance ensures returns |
-Long-life lithium iron phosphate battery, ¬ 8000 cycles.
-High-efficiency thermal management, no derating at 45°C, cell temperature difference 6°C.
-100% unbalanced output, up to 200% PV over-matching access.
|
| Intelligent Management, Flexible adaptation and expansion |
-Leading rack-level + pack-level + cell-level energy balancing algorithm, non-inductive pack change and cabinet expansion.
-Single cabinet can be configured with a 2/3/4h system of 50~125kW, up to 10 units AC-side on/off-grid parallel or 10 units DC-side battery parallel.
-Integrated energy platform, 24/7 AI smart customization of optimal power usage strategies.
|
